Auto Agent Cummins Diagnostic Cable
$50.00
Skip to product information
Auto Agent Cummins Diagnostic Cable
$50.00

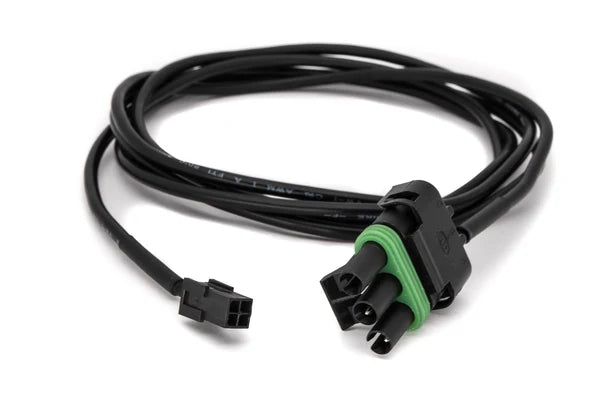

Some Cummins work needs a direct connection to the engine harness rather than the cab OBDII port. This EZ LYNK Cummins diagnostic cable connects your Auto Agent to the diagnostic connector on the engine harness under the hood, for ECU firmware updates.
Fits
- EZ LYNK Auto Agent 2 and Auto Agent 3
- Cummins diesel engines with an under-hood diagnostic connector on the engine harness
- For Auto Agent 1, use part number 100EE00C04 instead
Specs
- OBDII diagnostic cable for ECU firmware updates
- 6 ft 3 in long
- Black
What's included
- One EZ LYNK Cummins diagnostic cable, sold as each
Install note
- Locate the diagnostic connector on the engine harness under the hood.
- Connect the cable to the harness and to your Auto Agent, then follow the update steps in the EZ LYNK app.
- Keep the battery charged or on a maintainer during updates.
2018+ Ram? You may also need the OBDII cable with SGM adapter.
